Welding Penetration Inspection Systems, Pune, India

We are a trusted name in Precision Measurement and Spares industry, We are Manufacturer, Supplier, Sales and Services Provider of Welding Penetration Inspection Systems and our setup in Pune, Maharashtra, India.

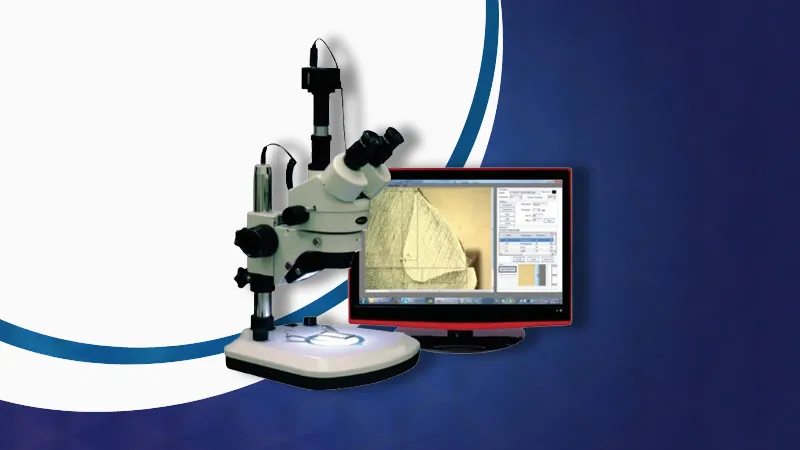

Offered by Shree Swami Samarth Engineers, the Welding Penetration Inspection System is an advanced solution for inspecting and measuring weld penetration with exceptional accuracy. Featuring a specially designed high-resolution microscope and USB digital microscopic camera, this system allows users to view, capture, and measure weld penetration depth instantly on various weld samples using user-friendly software. It is equipped to perform 2D measurements, including length, distance, radius, and diameter, ensuring comprehensive inspection and analysis.

Product Features :
- High Resolution Microscope : Designed for precision, the microscope provides a magnification range from 7X to 45X, with zoom objectives ranging from 0.7X to 4.5X, offering clear and detailed views of weld samples.
- USB Digital Camera : The USB digital microscopic camera easily connects to a computer, instantly displaying high-resolution images on the screen. This feature simplifies image analysis and reporting, supporting real-time inspection.
- User-Friendly Software : The software is tailored for weld inspection, offering advanced measurement tools, tolerance settings, and automated pass/fail status identification based on observed values.
- Comprehensive Measurement Capabilities :
  The system can measure key welding parameters such as :
  Weld Penetration Depth & Percentage
  Leg Measurement
  Throat Measurement
  Thickness Measurement
  Dimensional Measurement (2D) :Length, distance, radius, diameter, etc.
- Lighting and Illumination : The system offers three illumination modes—transmitted light, reflected light, and mixed light—allowing flexibility for various sample types. Brightness adjustments and illumination mode selection are user-friendly and efficient.
- USB Compatibility and Power :The USB digital camera is easily inserted into the microscope eyepiece tube and functions without an external power supply, making it portable and convenient for different work environments.
Application Areas :
- 1. Welding Inspection in Manufacturing : This system is crucial for industries like automotive, aerospace, heavy machinery, and shipbuilding where weld quality is critical. It ensures accurate measurements of weld penetration, depth, and other parameters, helping maintain product integrity and safety.
- 2. Quality Control in Fabrication : Fabrication plants can use the system to ensure welds meet specified tolerances, contributing to the overall quality of the product. The automatic pass/fail status feature helps speed up the inspection process.
- 3. Research and Development (R&D) : In labs and R&D centers, the system provides detailed analysis of weld samples, assisting in the development of new welding techniques and materials.
- 4. Education and Training : Educational institutions can use this system to teach students about weld quality inspection, providing hands-on experience with advanced technology.
- 5. Oil & Gas and Power Generation : The Welding Penetration Inspection System is ideal for inspecting welds in pipelines, pressure vessels, and other critical components used in the oil & gas and power generation sectors.
Why Choose Us?
- All-India Sales and Service Network : We provide nationwide coverage for sales and service, ensuring timely support no matter where your operations are located.
- High-Precision and Reliable Technology : Our Welding Penetration Inspection System offers the latest technology for accurate and reliable weld inspection, ensuring you meet stringent quality standards across all industries.
- Customized Solutions : We understand the unique needs of different industries, which is why our inspection system can be customized with various features to suit your specific requirements, including adjustable tolerances and automated reporting tools.
- Expert Technical Support and After-Sales Service : Our highly trained technicians are available to assist with installation, training, and maintenance, ensuring that your system operates efficiently at all times.
- Comprehensive Reporting Tools : With automatic pass/fail status identification and the ability to include sample information in reports, our software simplifies the documentation process and boosts productivity in quality control operations.
- Proven Track Record : With a history of delivering advanced engineering solutions across industries, Shree Swami Samarth Engineers is a trusted partner for all your inspection needs, offering reliability and expertise.
